New ! - Rivdom® TWO Battery Riveter

rivdom twoFast, powerful and reliable!
The powerful battery-powered riveter for blind rivets up to 6.4 mm diameter of all materials. Power: Li-Ion battery 20V DC 2,0 Ah, Diameter: 4,0-6,4 mm,

stroke: 30 mm, Weight:1,9 kg with battery, working power:20000N

More information at www.nitownica.com
Box Campac
Boks lewy


SPECIAL
OFFER

check >>>

Boks środkowy

Boks prawy

Products
  • stainless steel fasteners
  • blind rivets
  • blind rivet nuts
  • welding studs
  • self drilling screws
  • blind rivet bolt
  • sheet metal fasteners
  • toggles
  • marine fasteners
  • solar fasteners

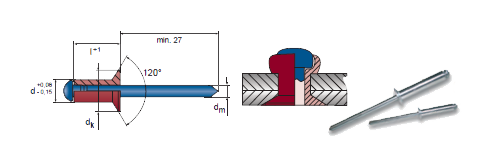

Standard blind rivets aluminium - steel countersunk head

BLIND RIVETS ALUMINIUM / STEEL
COUNTERSUNK HEAD




DIN EN ISO 15978		 nity zrywalne kołnierz stożkowy
d l +1 grip range dk dm index quantity
3,0 5,0 1,5-3,0 6,0
-0,4		 1,7 10.700.300.050 500
6,0 2,0-4,0 10.700.300.060 500
8,0 3,5-6,0 10.700.300.080 500
10,0 5,0-7,5 10.700.300.100 500
12,0 7,0-9,0 10.700.300.120 500
EN AW - 5719 [AlMg5] 3,1 mm 660N 900N

3,2 6,0 1,5-3,5 6,2
-0,4		 1,9 10.700.320.060 500
8,0 3,0-5,5 10.700.320.080 500
10,0 5,0-7,5 10.700.320.100 500
12,0 7,0-9,0 10.700.320.120 500
16,0 9,0-13,0 10.700.320.160 500
EN AW - 5719 [AlMg5] 3,3 mm 660N 1100N

4,0 6,0 1,5-3,5 7,5
-0,5		 2,0 10.700.400.060 500
8,0 2,0-5,5 10.700.400.080 500
10,0 5,0-7,0 10.700.400.100 500
12,0 6,5-9,0 10.700.400.120 500
16,0 8,5-12,5 10.700.400.160 500
18,0 12,0-14,5 10.700.400.180 500
EN AW-5754 [AlMg3] 4,1 mm 1120N 1420N

d l +1 grip range dk dm index quantity
4,8 10,0 4,0-6,5 9,0
-0,5		 2,7 10.700.480.100 500
12,0 6,0-8,0 10.700.480.120 500
16,0 8,0-12,0 10.700.480.160 500
20,0 12,0-15,5 10.700.480.200 500
EN AW - 5754 [AlMg3] 4,9 mm 1480N 1950N

5,0 8,0 2,0-5,0 9,3
-0,5		 2,7 10.700.500.080 500
10,0 4,0-6,5 10.700.500.100 500
12,0 6,0-8,0 10.700.500.120 500
14,0 7,5-10,0 10.700.500.140 500
16,0 8,0-12,0 10.700.500.160 500
18,0 11,5-13,5 10.700.500.180 500
20,0 12,0-15,5 10.700.500.200 500
25,0 15,0-20,0 10.700.500.250 500
30,0 20,0-25,0 10.700.500.300 500
35,0 25,0-30,0 10.700.500.350 250
EN AW-5754 [AlMg3] 5,1 mm 1650N 2000N

Above values reffer only to the blind rivets VVG / HONSEL group.
ONLINE SHOP

Feel free to browse our online shop.

Our offer includes: hand riveting tools,

battery riveting tools and pneumatic riveters.
RIVETER REPAIR SERVICE

Our company manages a factory-authorised pneumatic and hydraulic riveter repair service as well as manual riveters supplied by HONSEL.
MACHINES AND DEVICES

We represent the Italian company Capmac Industry produces automated machinery and equipment riveting.
COOPERATION

As the only distributor of VVG / HONSEL tools, we are looking for commercial partners – local shops and wholesalers in Poland.
